Power Quality Box // Power Quality Recorder
Power Quality Box from BentoNet for highly accurate recording and court-usable evaluation of the power quality in electrical power supply networks.

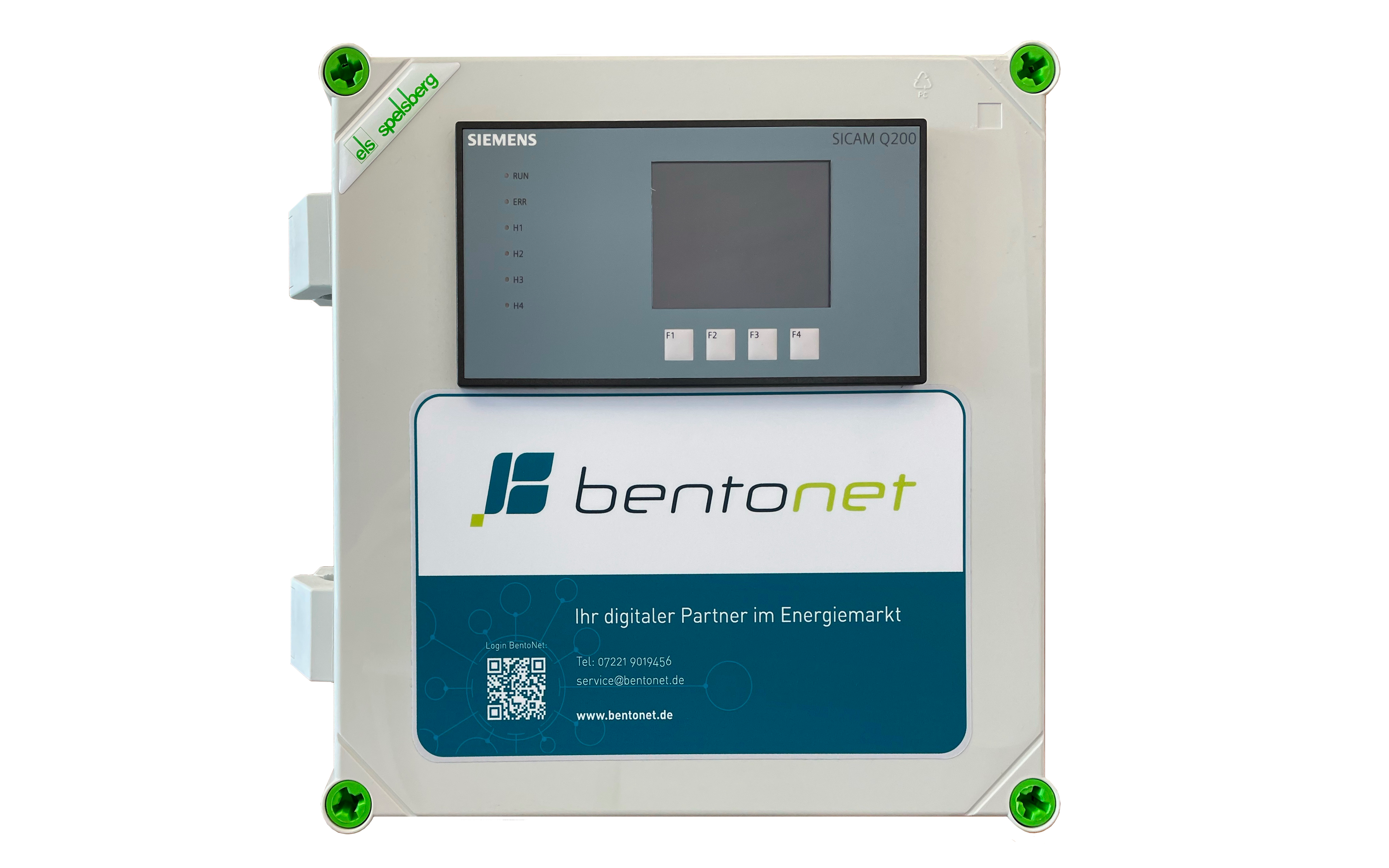

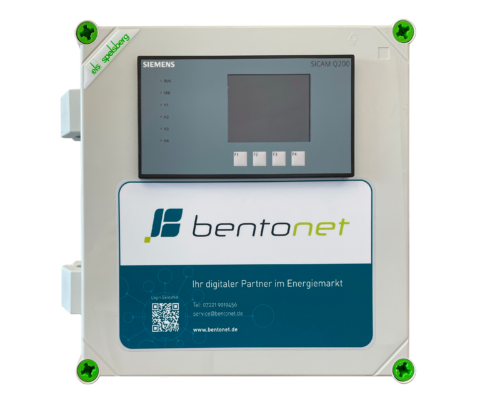

The Power Quality Box is a ready-to-use complete package with power quality recorder Q200
Range of application:
Industrial plants, charging parks and grid operation
// Description
The power quality recorder used is a power analyser for highly accurate recording and evaluation of the power quality in electrical power supply networks and also offers special algorithms and functions for energy management applications. The device ensures the continuous recording and thus analysis of all relevant parameters. The results help to define and implement appropriate measures to ensure the quality of supply. This increases the service life of the operating resources while reducing downtimes.
// Technical features
In the event of a deviation from the individually set standard parameters, the Quality Box uses a BasisBox to transmit the measured values to the artificial intelligence specially developed by the Siemens PTi department, which has been trained with historical data from the network analysis department for all network faults known to it. If an event occurs at the customer’s premises that triggers the set triggers, the collected event data is checked by the AI and, in the case of irregularities, examined in more detail by experts from the network analysis department.
In this way, optimal protective measures can be developed.
// The role of BentoNet
We supply the PQ meter as a module ready for installation and an associated gateway module for data transmission. The BentoNet infrastructure establishes a secure connection between the Siemens PTI and the customer’s measurement and provides a global down- and upload of the measurement data when an event is detected by the meter. The measuring device is set up remotely via secure maintenance access by Siemens PTi in coordination with the specialists on site to ensure error-free measurement.
// Technical data
- Connected load <15W
- Supply voltage 230V ~
- Protection class: IP68
- Operating temperature – 40 to +70 degrees Celsius
- Dimensions WxLxH 320x440x179 mm
Accessories // BentoNet DESKTOP
All your booked applications and interfaces are available on the BentoNet DESKTOP. The required CPUs and memory capacity can be booked individually according to your needs.
Accessories // BentoNet apps
BentoNet not only offers you apps, but also the hardware to fit your needs.
Consulting & Provider
BentoNet
Tel: +49 7221 9019444
Category
Hardware
Field of application
Industrial plants
Charging parks
Mains operation
Costs
- on request
