BentoNet Basis Box //

// Description

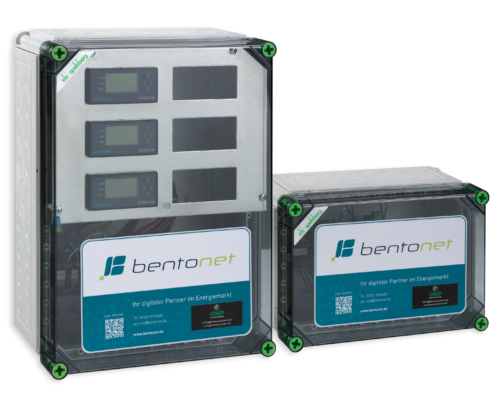

Compact plastic housing with a power supply unit and an LTE modem. This enables us to establish a secure connection to customers who do not want to be attacked from the public network. In addition, it makes us independent of the end customer’s infrastructure, protects his sensitive business area and there is no need to coordinate with IT. Due to data roaming, the use of the best available mobile network on site is given.

// Advantages

• Independence from the customer’s infrastructure
• Connection via mobile radio
• Protection of sensitive data

// Installation requirements

• Mobile radio coverage at the installation site (provider-independent)
  Access to an outside wall for mounting the omnidirectional antenna
  Maximum distance between gateway and customer installation 100m (Ethernet)

// Configuration (2 versions possible)

Version 1:

• Connection via R45 / Ethernet
• enables the connection of BentoNet modules such as the Flex module, On/Off module and the PQ module
• a direct connection to a Modbus TCP-capable customer installation can also be established

Version 2:

• RS485 interface
• Communication with customer installations that have a Modbus-RTU interface

// Technical data

• Connected load: <12W
• Supply voltage: 230V ~
• Protection class: IP65
• Operating temperature: -10 – +55 degrees Celsius
• Dimensions (WxLxH): 320 x 220 x 179 mm
